Education

Commercial Installed Sound

  • Broadcast Presentations to a Second Room “Although the presentation rooms at our multi-room complex are normally used independently, there are times when we want to broadcast a presentation being held in the main room to one or more satellite rooms so that a larger audience can be accommodated.”

    The solution we propose for this situation is ideal for educational facilities, municipal halls, houses of worship, and more.

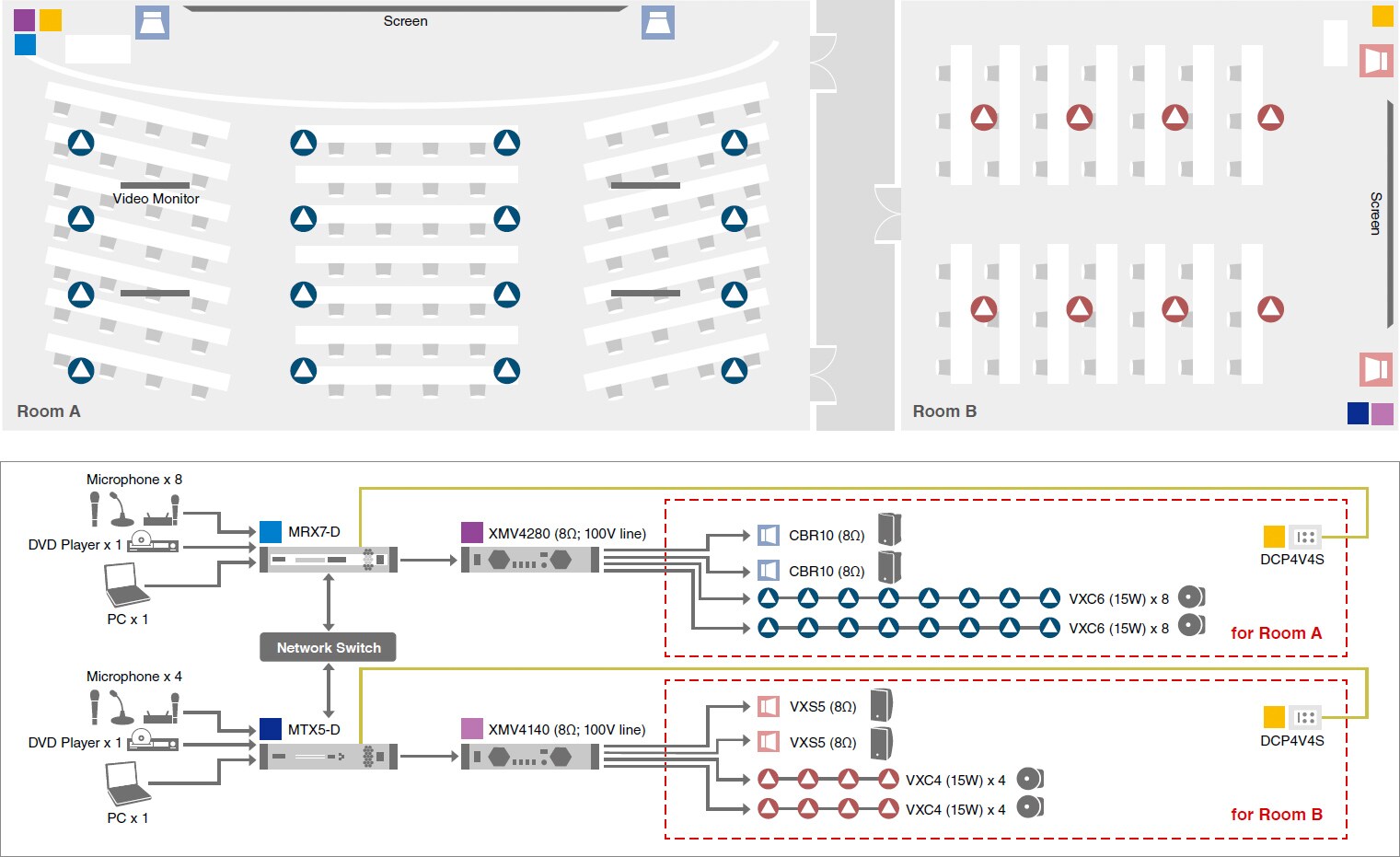

    The MRX7-D and MTX5-D allow Dante audio networking over long distances with no delay or degradation in sound quality. If an appropriate setup is pre-programmed using the MTX-MRX Editor software, it is possible to broadcast audio simultaneously to all rooms by simply pressing a button.

    The Dugan Automixer function built into the MRX7-D can be a huge advantage for lectures, panel discussion, or other situations where multiple speakers may use their microphones at unpredictable times. When active the Dugan Automixer keeps track of which microphones are being used and which are not, and automatically adjusts individual microphone levels so that the speaker can be clearly heard without being cut off or interrupted by feedback.

    DCP4V4S control panels installed in each room allow remote control of audio source and microphone levels as well as on/off switching.

Lineup

  • MTX-Serie

    Yamaha Digital Signal Processor MTX Series
    Digitale Signalprozessoren

    Zahlreiche durchdachte Routing- und Signalverarbeitungsfunktionen sorgen dafür, dass sich die Matrixprozessoren der MTX-Serie in nahezu jedem Geschäftsumfeld zuhause fühlen.

  • MRX7-D

    Yamaha Digital Signal Processor MRX7-D
    Digitale Signalprozessoren

    Einfache und flexible Steuerung für komplexe, leistungsfähige Sound-Systeme

  • XMV-Serie
    Leistungsverstärker

    Yamaha Multi-Channel Power Amplifiers XMV Series
    Mehrkanalige Leistungsverstärker

    Die Mehrkanal-Leistungsverstärker der XMV-Serie kombinieren Class-D-Effizienz mit Funktionen, die speziell für kommerzielle Beschallungsanlagen entwickelt wurden.

  • VXS-Serie

    Yamaha Surface Mount Speakers VXS Series
    Aufputz-Lautsprecher

    Die VXS-Serie umfasst zwei Full-Range-Modelle und zwei Subwoofer. So können Sie je nach Einsatzzweck das am besten geeignete Modell auswählen und, falls erwünscht, dieses mit einem Subwoofer kombinieren, wenn vor Ort ein besonders kraftvoller Tiefbass benötigt wird.

  • VXC-Serie

    Yamaha Ceiling Speakers VXC Series
    Deckeneinbau-Lautsprecher

    Die VXC-Serie umfasst drei Modelle, die sich hinsichtlich ihres Durchmessers und ihrer Leistungsdaten unterscheiden. Es ist daher kein Problem, auf der Suche nach den optimalen Lautsprechern für Ihren Standort hier fündig zu werden.

  • CBR-Reihe
    Lautsprecher

    Yamaha Loudspeakers CBR Series
    Passiv-Lautsprecher

    Die Lautsprecher der CBR-Reihe liefern eine außergewöhnliche Audioperformance für verschiedenste Anwendungsbereiche wie zum Beispiel FOH-Sound, Bodenmonitoring oder Installation.

  • Steuerungs-Panel

    Fernbedienungen für Geräte der Serien MTX/MRX und MA/PA.
