Unique Models: Distinctive models born from original ideas
Over the 45 years since the advent of the PortaSound PS-1/2/3 in 1980, Yamaha has released around 500 portable keyboard models and sold more than 60 million units worldwide. The company has skillfully incorporated the latest technologies and trends and harnessed innovative ideas to create countless products, among them standout models that have had a substantial impact on the world.
HandySound HS-500: Making it fun to develop a natural sense of sound
After PortaSound gained popularity among young people, Yamaha turned its attention to children. The sense of hearing develops most from ages three to 12, and so in 1982, Yamaha released the HandySound HS-500, a keyboard designed to help children have fun acquiring a natural sense of sound during this critical period in their lives.
While existing keyboards for young children were strong on toy aspects, the HS-500 featured educational aspects in addition to being entertaining. Another key benefit was its broad-ranging expressive capability as a musical instrument.
At the target age of the HS-500—three to 12—it is crucial to learn by ear first and foremost. With that in mind, Yamaha included in the model many clever features to help children develop a natural sense of sound. The HS-500 had Piano, Organ, Clarinet, and other Voices that are both distinctive and familiar. For example, once a child could locate B and G on the keyboard, they could recreate the sound of a police car or ambulance siren using the Organ Voice. The unit also featured games that encouraged them to sing out and play notes that follow the singsong cadences called out during children’s games like hide-and-seek. The focus went beyond playing the keys; another game designed to develop a sense of sound first asked children to find certain keys on the keyboard, and then progressed to playing notes and phrases for the children to guess.
In 1954, Yamaha launched an “experimental classroom” that would eventually become Yamaha Music School, and created the Yamaha Music Education System (the basis of the current method). Yamaha Music Schools are active in more than 40 countries and regions today. Interestingly, the curriculum is the same in each. Rather than starting with the difficult task of reading sheet music as in the Beyer method, the Yamaha method allows children to naturally refine their sense of sound as they experience and enjoy music in a variety of forms. Another important feature of the program is the timing of the content—for example, listening is emphasized at ages four and five, when hearing develops most. They learn the names of the notes in the same way that they learn words.
The HS-500 seemed to embody the Yamaha method. It was also a communication tool for parents and children to enjoy together, and with 25 keys and a weight of only 550 g (including batteries), it was perfectly sized for young children. Parents loved the compact keyboard because it enabled their children to play and learn anytime, anywhere.

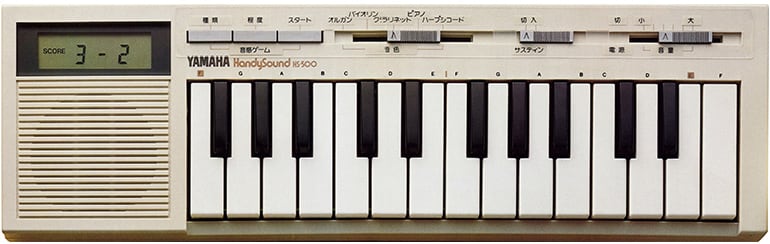

HS-500
PortaSound PC-100: The “MYBAND” keyboard with Yamaha’s groundbreaking Playcard system
In October 1981, Yamaha expanded its market by introducing premium PortaTone models (PS10/20/30) in rapid succession. The releases prompted industry insiders to marvel at the extent of Yamaha’s technical expertise with portable keyboards and stoked the expectations of users—mainly young people for whom music had become a part of fashion—for whatever was coming next.
The following year, Yamaha unveiled the PortaSound PC-100, which users would eventually call their “MYBAND.”
An advertisement from the time
The instrument’s truly groundbreaking feature was its ability to provide accompaniment at whatever tempo the user played; no other keyboard in the world could do that in 1982. It featured an innovative human-centric design that allowed the instrument to adjust to the speed at which the user played the melody, rather than the other way around.
The key to this feature was Yamaha’s proprietary Playcard system developed using the company’s digital technology. The Playcard system allowed users to instantly enjoy all aspects of a song simply by inserting a Playcard with a magnetic tape into the instrument’s card reader to load the melody, accompaniment, and other musical data into the instrument. As amazing as it was for the accompaniment to follow the speed at which the user played the melody, the songs could also be played without the melody so that the user could experience playing the melody solo or backed by the other instruments in the ensemble. Additionally, lights indicated which keys to play for the melody, and the demos with full accompaniment could serve as a karaoke machine or background music. Put simply, the PortaSound PC-100 was all anyone needed to enjoy listening, playing, and singing.
The instrument featured a number of other outstanding functions, including sustain and vibrato effects with 10 Voices (plus eight obbligato Voices), three Fun Blocks (10 Auto Rhythms, Auto Bass Chord, and Arpeggio), and Transposer and Pitch Control for karaoke and ensemble playing.
Incidentally, Playcards were inspired by bank ATM cards. However, given that they had to hold 500 times more data, they required a total of four years of development, making them something completely new rather than a derivative of an existing idea.
With its multifunctionality, users came to call their PortaSound PC-100 keyboards “MYBAND.” The model was a huge hit with people who had never even thought of playing musical instruments before, especially middle-aged people who did not have the same time or opportunities with instruments that young people had.
An advertisement for the PortaSound PC-100 starred Giant Baba, a 209-cm colossus who spearheaded the Japanese pro wrestling boom at the time. In it, he plunked out a tune with one finger, and the accompaniment dutifully followed him. “Even I can play!” he said with a huge smile. It was striking to see a world champion wrestler who had perfected his skills in faraway lands so thoroughly enjoy playing a musical instrument—the tagline was “I’m vacating my title as Worst at Music!”

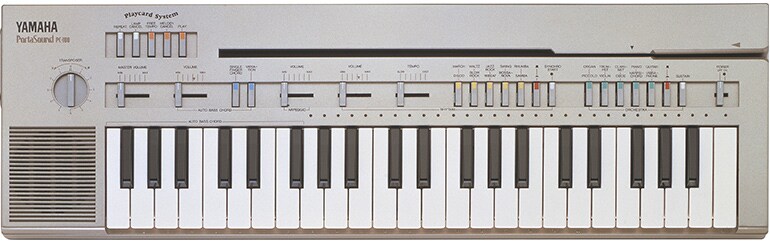

PC-100
PortaSound MP-1: The world’s first portable keyboard with a built-in music printer
From 1969 to 1986, Yamaha hosted the Yamaha Popular Song Contest (“Popcon”), a festival for amateur musicians to present their original compositions. The staggering number of songs submitted each year suggested that more young music lovers than ever were delving into the pleasure of creating music, in additional to listening to and playing it.
To meet these needs, Yamaha released the PortaSound MP-1 in 1982, the first-ever keyboard with a built-in music printer that instantly converted notes played into sheet music. The printer—the world’s smallest high-precision music printer, developed by Yamaha—printed sheet music complete with chord notation as soon as the user played a melody and chords. The device also corrected typical beginners’ errors to make the score easier to read, and faithfully rendered complex melodies played by intermediate and advanced players to the sixteenth note. The built-in memory function also enabled users to input melodies and chords separately to create full scores.
The instrument’s memory could store melodies and chords for playback, and supply one-note countermelodies to melodic lines played during playback to add depth.
With 10 Voices, 10 rhythms, and a full range of expressive features including Auto Bass Chord, Auto Arpeggio, Transposer, and Pitch Control, the PortaSound MP-1 further expanded the pleasure of music by adding the joy of composing to the keyboard experience.
A PortaSound MP-1 is currently on display in the History Walk section of the Innovation Road museum at Yamaha’s headquarters in Hamamatsu and is designated as a permanent exhibit.

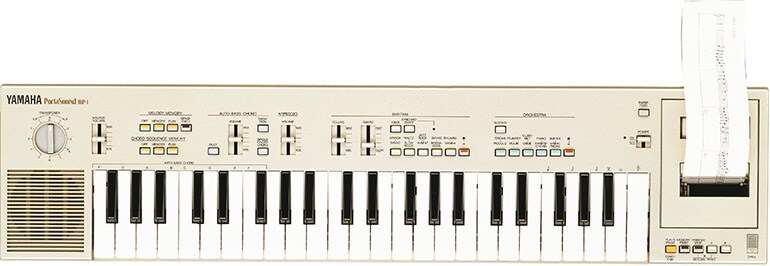

MP-1
MK-100: Synthesizer-like Voice creation
In 1983, Yamaha released the DX7 synthesizer, a best-seller used by artists all over the world. That year, the company also introduced the MK-100, which redefined what a portable keyboard could be.
The MK-100 was a 49-key portable keyboard equipped with a feature that created Voices by combining waveforms and envelopes like a synthesizer. The feature gave users the freedom to create their own Voices in addition to rhythms and bass patterns.
In addition to basic functions like Auto Bass Chord, the instrument included a variety of features such as Music Programmer, which could store chords and melodies separately and play them back simultaneously. The model also had a cassette interface that allowed users to connect to a tape deck or other external device using the accessory port to store Voice and performance data digitally on cassette tapes, and reload it to the main unit later.
Notably, the MK-100 was the first portable keyboard to feature the same FM tone generator as the DX7. The FM sound generation method is a patented technology that Yamaha licensed from Stanford University in 1975. Yamaha improved the computation algorithms to develop technology capable of replicating a broad range of musical instruments, and successfully applied large-scale integration (LSI) to mass-produce and market better FM tone generators characterized by their ability to simulate Voices with complex overtones, using a fraction of the data.
The compact MK-100 imbued with Yamaha technology was appreciated by people involved in music production for its array of possibilities and the joy brought by its cutting-edge capabilities.

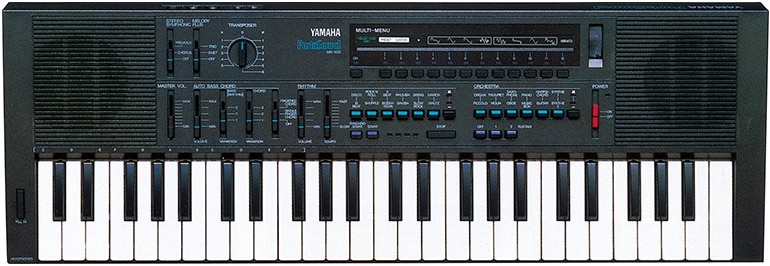

MK-100
TYU-20/30: Introducing children to the wonderful world of music
The TYU20/30 portable keyboards splashed onto the scene in 1984, with a palette of bright, exciting colors and fun design that proved to be irresistible to children. In fact, these 25-key, two-octave models were specifically designed to appeal to children.
The TYU-20 had a bright red body featuring a large treble clef accompanied by a stylized eighth note, and featured 20 preset songs with selectable tempos. In addition to a Piano Voice, the unit had a Human Voice that called out the names of the notes, a distinctive feature that stimulated children’s curiosity.
In contrast, the vivid blue TYU-30 offered a fuller range of functions. It came with two music cartridges with 10 songs each and a microphone, and had different settings to allow children to listen to the songs, play them, or plug in the microphone and sing along. The unit also had a rhythm function with a selection including Waltz, Swing, Rock, and Latin, and a function that automatically supplied orchestral and rhythmic accompaniment when a song was selected. LED lights on the keyboard lit up to show the children which keys to play in which order, helping them progress. The model also had an AUX OUT port to connect to external speakers.
Despite their miniature size at 25 keys, these portable keyboards played a major role in introducing children to the wonderful world of music, especially in Europe and the United States.
-

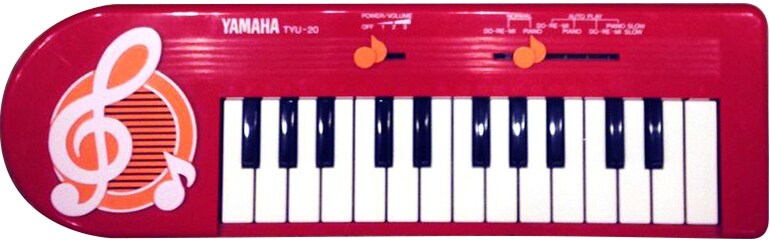

TYU-20
-
TYU-30
VSS-100: The first portable keyboard with a voice sampler
Although more and more synthesizers were coming with samplers in the mid-1980s, portable keyboards had yet to include these functions. That changed in 1985, when Yamaha released the VSS-100.
In this case, sampling refers to the act of recording vocal and other sounds and storing them in the keyboard as sound sources. All kinds of sounds can be used as keyboard sound sources, including human and animal voices, car and TV sounds, and more.
The VSS-100 could sample up to eight seconds of audio supplied through the microphone or external line, and the pitch could be changed on playback. Sampled sounds could be combined with the preset orchestral Voices, or used as the bass for Auto Bass Chord to create an accompaniment with original bass sounds.
Even more surprising was the price: just 45,000 yen at a time when samplers typically cost more than 1,000,000 yen each, and synthesizers with sampler functions were quite expensive despite being more common. Yamaha developers’ hard work resulted in astonishing cost performance that resonated with users.
The introduction of the VSS-100 with its voice sampler completely changed expectations for portable keyboards and established a new world of creative fun.

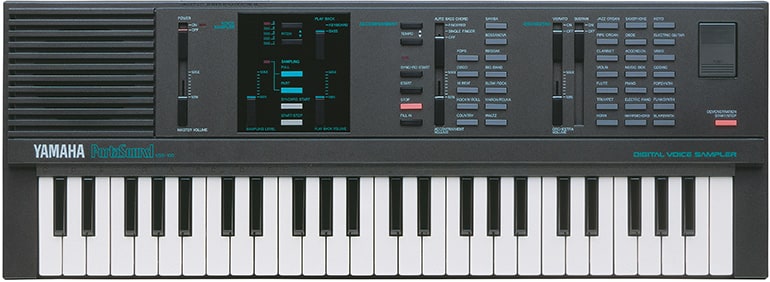

VSS-100
SHS-10: The lovable keytar that came to be known as “Sholky”
Yamaha’s portable keyboards originated from the endeavor to create a small keyboard that could be carried around and played anytime, anywhere like a guitar. In 1987, the year Yamaha celebrated its 100th anniversary, the company released the SHS-10 keytar—a keyboard with a strap designed to go around the shoulders so that keyboardists can hold and play the instrument like a guitar.
Although generally known as a “Keytar” (an amalgamation of “keyboard” and “guitar), in Japan the instrument was known as a “shoulder keyboard,” and eventually took on the affectionate nickname of “Sholky.” Whatever the name, the keytar gained recognition in the 1980s because famous artists in Europe and the United States were playing them.
The SHS-10 had a sleek body for total playability and came in two colors: red and metallic silver, both of which looked fantastic on stage. With 32 keys and weighing in at just 1.1 kg, the instrument was lightweight and compact, yet had 25 FM Voices including Synthesizer, Piano, Steel Drum, and Harmonica; 25 exciting rhythm patterns including Rock, Jazz, Reggae, and Country; a built-in speaker; and a MIDI output jack. In all aspects, the SHS-10 was designed for serious music-making.
Users also loved the ability to preload chord sequencer accompaniments so that the melody was all that was left to play, making it easy for beginners to experience the fun. There was plenty for advanced players to enjoy too, as Accompaniment mode and pitch bend and other effects allowed them to explore the full range of their techniques.
Keyboardists had never been able to move about freely on stage and give showy performances like vocalists and guitarists. The SHS-10 solved that problem and could also be played in groups or immersive solo practice at home. In sum, there were endless ways to enjoy the instrument. Given the broad range of functions, the affordable price of 23,800 yen was another pleasant surprise for users.
Commercials for the SHS-10 starred Yuki Matsushita, a well-known actress from popular TV shows. The sight of her dancing in the streets while playing the Sholky presented a vivid image of a new style of playing and a different kind of relationship with a musical instrument that captured the hearts of users. Love for the instrument and its nickname spread rapidly and lives on today in the highly popular Sonogenic series of keytars.
SHS-10
PSS-102/104: Music cards queued different functions
The PSS-102 and PSS-104 released in 1991 were a new iteration in Yamaha’s line of portable keyboards for children. The key advancement with these models was the music cards. The player would insert a card into the panel on the main unit, and the unit would read the barcode on the back of the card and enable the player to cycle through various functions.
The set of cards—30 for the PSS-102, 60 for the PSS-104—included cards for Voices, Rhythm Styles, Songs, a Karaoke Contest, Percussion, and Games. The PSS-104 also came with a Synthesizer card that gave users six parameters with which to create sounds, Chord Lesson cards for learning chords, and more.
Each card offered a different musical experience. For example, users could select and play their favorite Voices by inserting one of eight Voice cards with 32 Voices into the PSS-102, or nine Voice cards with 74 Voices into the PSS-104. The Voices were quite diverse, going beyond Piano, Organ, and other keyboard instruments to include string instruments, wind instruments, and even a Helicopter Voice. Inserting a Karaoke Contest card would activate an intro, after which the accompaniment would start. Users who sang or played the right notes at the right time were rewarded with a “Perfect Score Fanfare.” The keyboard was also equipped with a detachable microphone.
The Game cards featured note-guessing and other fun games, and the PSS-104 also came with Quiz cards that asked users to guess the sounds of classical music and instruments from around the world. The model was highly acclaimed as a multifunctional keyboard that introduced children to the world of music, allowing them to play with sound and making learning fun.
-

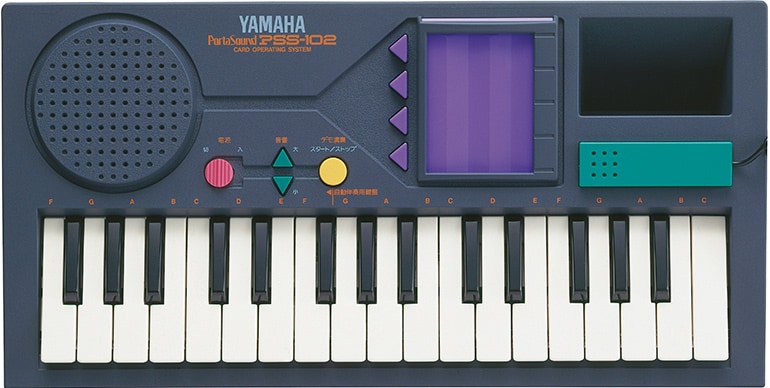

PSS-102
-

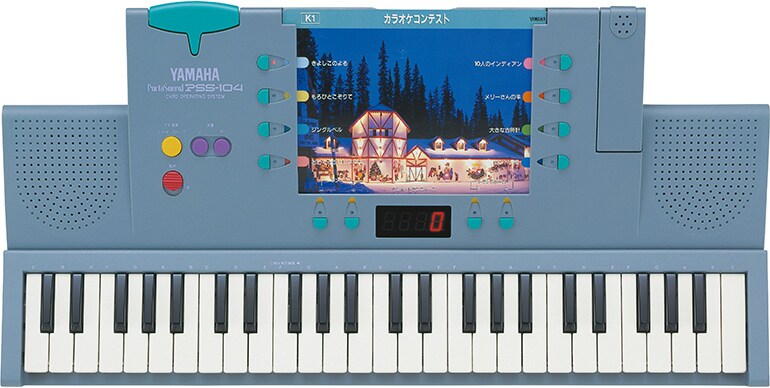

PSS-104
PSR-D1 DJX/DJX-II/DJX-IIB: DJing with a portable keyboard?!
DJing became popular during the disco days of the 1970s. Originally, DJs mainly played the supporting (but not unappreciated) role of selecting and playing the right music to liven up the dance floor. With the ensuing rise of techno and house music, DJs steadily took on the leading role in music. In the 2000s, electronic dance music (EDM) took off, and many DJs gained fame worldwide.
This was the context in which the DJX PSR-D1—an easy-to-operate, all-in-one digital keyboard that allowed users to enjoy playing dance music and feeling like a DJ in a club—was released in 1998.
The new model included 100 rhythm Styles created specifically for dance music, and 283 essential sound effects and Voices for DJ performances. All a user had to do was select a rhythm and turn a knob or flip a switch to control the brightness of the sound or crank up the bass as the music played.
The DJX PSR-D1 also featured a Sampling function for creating sound effects with users’ recorded sounds, and a Turntable function that required only a finger to simulate typical DJing techniques like changing the playback speed of a record to alter its sound quality and tone. With powerful stereo speakers that reproduced the thumping bass of dance music, a MIDI jack, and other essential features for an authentic DJ experience, this model turned heads as an instrument that allowed even beginners to feel like a DJ.
In 2000, Yamaha released the more advanced DJX-II, a model designed not as a keyboard to play, but as specialized DJ gear with more intuitive operations and practical functions. That same year, the company also released the DJX-IIB, a mixer-like box packed with genuine club sounds and features with simple, game-like operation to allow anyone to enjoy being a DJ.
The instruction manuals called the DJX-II and DJX-IIB “digital DJ machines” and touted the fact that the user could be a DJ “with no knowledge of notes, chords, or other difficult music theory”—all they needed was a “sense of rhythm” that they could hone through experience with the instruments.
The DJX series offered a completely new way to engage with music and emerged as the ideal choice for anyone with a dream to play cool music, create that club sound, enjoy the experience of being a DJ, and even become a real DJ one day.
Yamaha’s portable keyboards are the result of the fusion of innovation and creativity. They are more than mere instruments—they have opened up new possibilities for musical expression. Each one carries the distinctive air of its time, and bursts with a passion for music.
Without a doubt, Yamaha’s journey of innovation and playful exploration will continue to enrich people’s musical experiences.
-

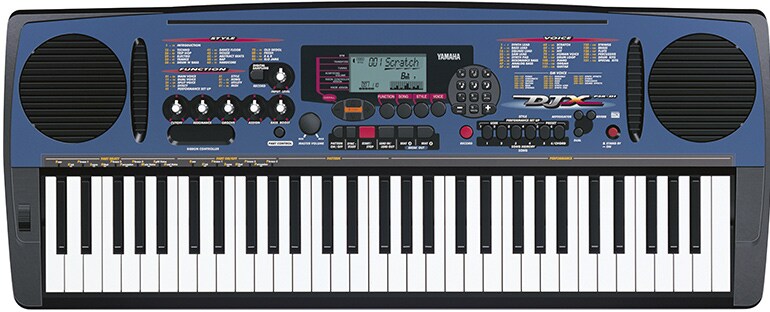

PSR-D1 DJX
-

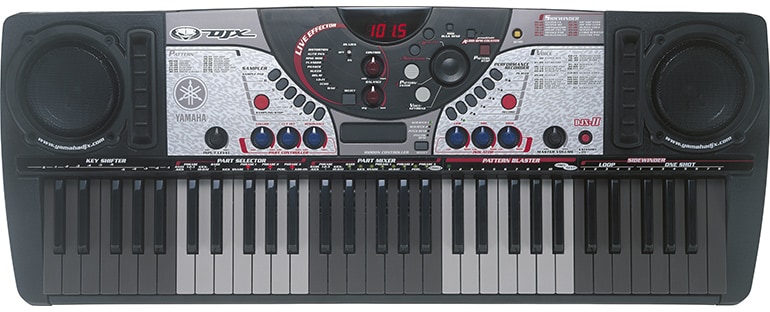

DJX-II
-

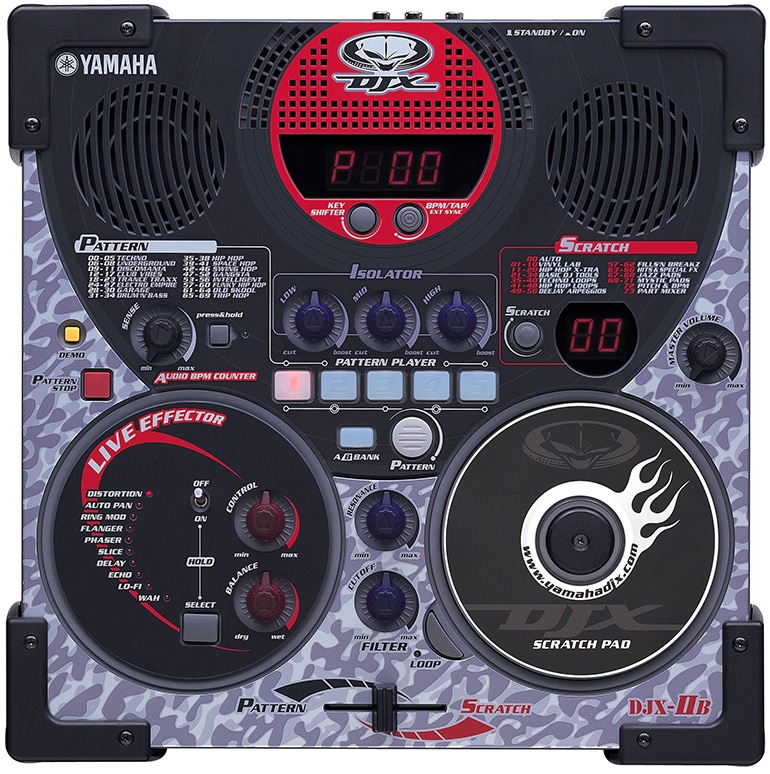

DJXIIB
